PGP ULTRA a I-20 PRB

The PGP-04 and I-20 pressure regulated bodies will take incoming pressures of 50-100 PSI and reduce them to 45 PSI. The Hunter PRB rotors allow the nozzles to operate at peak efficiency, saving up to 25 percent more water. Having the pressure regulator in the body allows it to remain in place and functional even if the original riser is removed and replaced for service.
  Models: PGP Ultra: 4", I-20: 4", 6"
  Arc setting: 50 to 360 degrees
  Factory installed rubber cover
  Through-the-top arc adjustment
FEATURES
 QuickCheck arc mechanism
  Water lubricated gear-drive
  Nozzle choices: 30
  Nozzle racks: 1.5 to 8.0 Blue, 2.0 to 4.5 Low Angle Gray, 0.50 to 3.0 Black, MPR-25, MPR-30, MPR-35
  Warranty period: 5 years


PRESSURE REGULATED BODY (45 PSI)

Reduces high incoming pressure to prevent misting and allows nozzles to operate at peak efficiency. Lower pressure produces larger water droplets that fight the effects of wind.

PGP Ultra 4", I-20 4" and 6"


PRESSURE REGULATED BODY (45 PSI)

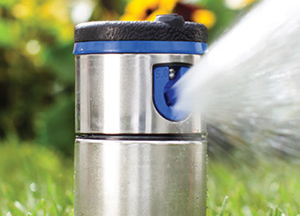

For unforgiving soil conditions, unpredictable climates, or heavy foot traffic, stainless steel with the I-20 model is the best choice




DRAIN CHECK VALVE (UP TO 10 FT. OF ELEVATION)



The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.




OPTIONAL RECLAIMED WATER ID



Purple caps indicate where non-potable irrigation water is being used.




AUTOMATIC ARC RETURN



This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.




NON-STRIPPABLE DRIVE



The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.




PART- AND FULL-CIRCLE IN ONE MODEL



Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.




HEADED AND SLOTTED SET SCREW

Reduces high incoming pressure to prevent misting and allows nozzles to operate at peak efficiency. Lower pressure produces larger water droplets that fight the effects of wind.

PGP Ultra 4", I-20 4" and 6"

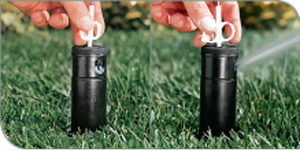

FLOSTOP® CONTROL FOR I-20



FloStop closes the flow of water from individual sprinkler heads while the system is running. This is ideal for changing nozzles or turning off specific heads during maintenance and construction.




 I-20-06-PRB

Celková výška: 10 5/8"
Výška výsuvu: 6"
Priemer: 1¾"
Pripojenie: 3/4"

I-20-04-PRB

Celková výška 8 1/4"
Výška výsuvu: 4"
Priemer: 1¾"
Pripojenie: 3/4"

PGP-04-PRB

Celková výška: 8 1/4"
Výška výsuvu: 4"
Priemer: 1¾"
Pripojenie: 3/4"
